| Brand Name : | Yade |
| Model Number : | 20291-18-06 |
| Price : | be negotiation |

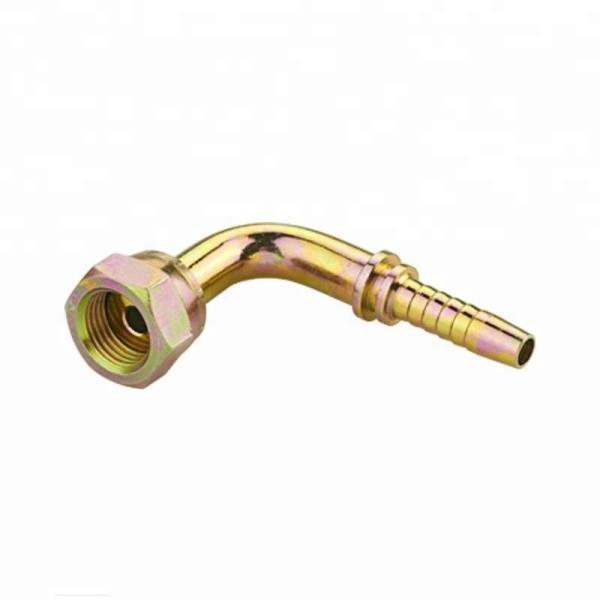

metric female fitting/swivel hose barb fittings(20291)<
| E | HOSE BORE | DIMENSIONS | |||||
| PART NO. | THREAD E | DN | DASH | A | C | H | S2 |
| 20291-12-02 | M12*1.25 | 4 | 2 | 26.5 | 8 | 30.5 | 17 |
| 20291-12-04 | M12*1.25 | 6 | 4 | 30 | 8 | 33.5 | 17 |
| 20291-14-04 | M14*1.5 | 6 | 4 | 30 | 8.5 | 34 | 19 |
| 20291-14-05 | M14*1.5 | 8 | 5 | 33 | 8.5 | 37 | 19 |
| 20291-16-04 | M16*1.5 | 6 | 4 | 30 | 8 | 35 | 22 |
| 20291-16-05 | M16*1.5 | 8 | 5 | 34 | 8 | 38 | 22 |
| 20291-16-06 | M16*1.5 | 10 | 6 | 35.3 | 8 | 40.3 | 22 |
| 20291-18-05T | M18*1.5 | 8 | 5 | 33 | 8 | 39 | 24 |
| 20291-18-06 | M18*1.5 | 10 | 6 | 35.75 | 8 | 41.3 | 24 |
| 20291-22-08 | M22*1.5 | 12 | 8 | 41 | 10 | 48 | 27 |
| 20291-22-10 | M22*1.5 | 16 | 10 | 57.5 | 10 | 53 | 27 |
| 20291-24-08T | M24*1.5 | 12 | 8 | 41 | 11 | 45.5 | 30 |
| 20291-27-04T | M27*1.5 | 6 | 4 | 30 | 10 | 35.5 | 32 |
| 20291-27-08T | M27*1.5 | 12 | 8 | 41 | 10 | 46 | 32 |
| 20291-27-10T | M27*1.5 | 16 | 10 | 56 | 10 | 51 | 32 |
| 20291-30-12 | M30*1.5 | 20 | 12 | 66.2 | 11 | 63.5 | 36 |
| 20291-33-14 | M33*2 | 22 | 14 | 71.2 | 13 | 65 | 41 |
| 20291-36-14T | M36*2 | 22 | 14 | 71.2 | 13 | 61 | 41 |
| 20291-36-16 | M36*2 | 25 | 16 | 76.7 | 13 | 70 | 41 |
| 20291-39-16T | M39*2 | 25 | 16 | 76.7 | 13 | 67.5 | 46 |
| 20291-42-20 | M42*2 | 32 | 20 | 91.5 | 15 | 82.5 | 50 |
| 20291-45-20T | M45*2 | 32 | 20 | 91.5 | 15 | 78.5 | 55 |
| 20291-52-20T | M52*2 | 32 | 20 | 91.5 | 17 | 78.5 | 60 |
| 20291-52-24T | M52*2 | 40 | 24 | 109.4 | 17 | 92 | 60 |
| 20291-60-28T | M60*2 | 45 | 28 | 119.9 | 20 | 106.5 | 70 |
| 20291-64-32T | M64*2 | 50 | 32 | 130.95 | 23 | 113.3 | 75 |
| Material | Carbon Steel ,Stainless Steel,aluminum etc.. |
| Treatment | Nickel,chrome,painting,hot galvanizing. |
| Thread | Metric,DIN,JIC,BSP,SA,GAS,ORFS etc.. |
| Connection | Female and male. |
| Process | CNC machining base on forged part or bar raw material. |
| Delivery Time | 30 Days after receipt of deposit Payment |
Our QC procedure:
As we had more than 5 professional and technical personal, they
ensure 100% products checking.
1. Material checking: strictly control of material using, meet
international requested standards;
2. semi-finished products inspection: product inspection before
100% finished ;
3. production line test: with work team or data engineer who will
inspect machines and lines at fixed period.
4. finished product inspection: quality and property test before products are plated
zinc, packed and loaded.
Shipping & Service:
1. Orders will be dispatched around in 30 days after payment,
depending on quantities.
2. We Always choose the most economical and reliable shipping
company to make sure you receive the goods in time.
3. The tracking number will be provided to you once the consignment
is shipped
4. Professional customer service to answer your questions or fix
problems regarding your order.
Q: How about payment?
A: For large orders, T/T, L/C. For small orders, credit cards are
accepted (SHOULD SPECIFY HERE WHICH CC PAYMENT SYSTEMS ARE
ACCEPTABLE: MASTER CARD, VISA, AMERICAN EXPRESS, ETC.)
Q: What about shipping?
A: We ship small batches by air,or larger orders by container. In
any event, we get quality product out the door quickly.
Q: Can you provide certificates?
A: Yes, certainly, we can supply ISO 9001 certificates.
If you have any other questions,please do not hesitate to contact
us!
|
|
