| Brand Name : | YADE |
| Model Number : | hydraulic hose flange |
| Price : | be negotiation |
Product Name

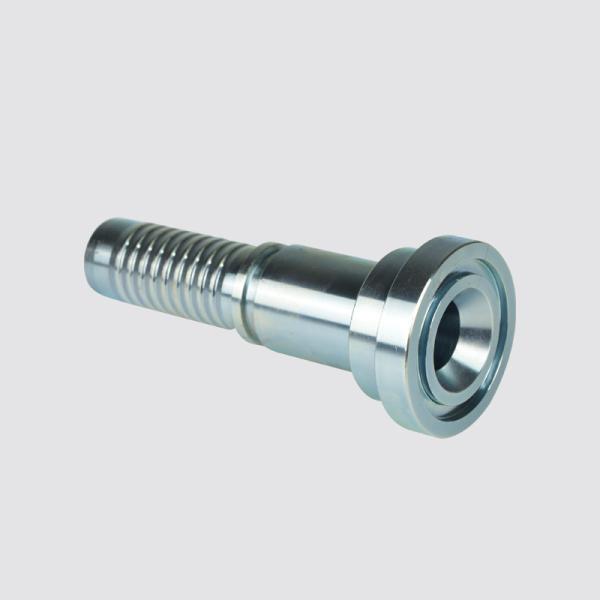

SAE flange 3000psi Hydraulic Hose End Fittings Forged Flange Hydraulic Hose Flange
SAE flange are production according the EATON standard ,in normal ,we used the carbon steel ,stainless steel and brass material ,if you have production quantities ,we can supply the material according to your requirement
| HOSE BORE | DIMENSIONS | ||||||
| PART NO. | FLANGE SIZE | DN | DASH | A | C | D | L |
| 87312-08-08 | 1/2" | 12 | 8 | 46 | 30.2 | 24 | 6.73 |
| 87312-12-08 | 3/4" | 12 | 8 | 47 | 38.1 | 31.7 | 6.73 |
| 87312-12-10 | 3/4" | 16 | 10 | 48 | 38.1 | 31.7 | 6.73 |
| 87312-12-12 | 3/4" | 20 | 12 | 48 | 38.1 | 31.7 | 6.73 |
| 87312-12-16 | 3/4" | 25 | 16 | 49 | 38.1 | 31.7 | 6.73 |
| 87312-16-12 | 1" | 20 | 12 | 51 | 44.4 | 38 | 8 |
| 87312-16-16 | 1" | 25 | 16 | 52 | 44.4 | 38 | 8 |
| 87312-16-20 | 1" | 32 | 20 | 53 | 44.4 | 38 | 8 |
| 87312-20-16 | 1.1/4" | 25 | 16 | 57 | 50.8 | 43 | 8 |
| 87312-20-20 | 1.1/4" | 32 | 20 | 58 | 50.8 | 43 | 8 |
| 87312-24-20 | 1.1/2" | 32 | 20 | 68 | 60.3 | 50 | 8 |
| 87312-24-24 | 1.1/2" | 40 | 24 | 68 | 60.3 | 50 | 8 |
| 87312-32-24 | 2" | 40 | 24 | 70 | 71.4 | 62 | 9.53 |
| 87312-32-32 | 2" | 50 | 32 | 70 | 71.4 | 62 | 9.53 |
| 87312-40-40 | 2.1/2" | 64 | 40 | 76 | 84.1 | 74 | 9.53 |
|
|
